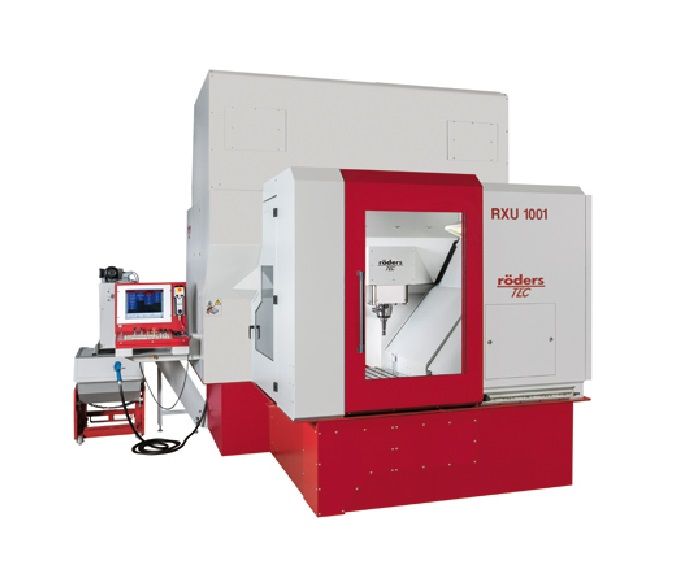

RXU1001-3AX

Sku: RXU1001-3AX
Vendor: Cybertech
Status: Stocking
Contact
  • With QUADROGUIDE® for high roughing capacity, dynamics and precision
  • All axes with direct drives
  • Milling spindle may be chosen depending on the application, up to 67 Nm (S1) available
  • Ideal for forging dies, mould and die making, aerospace industry, medical applications, machine production and part manufacturing

Tiêu đề
Hotline sales support 24/7: (+84) 24 3764 8882
|
Quantity
Machining range1000 mm x 810 mm x 500 mm
Table size996 mm x 798 mm
Max. height710 mm between spindle nose and machine table
Workpiece weightmax. 2,000 kg
Feed0–60,000 mm/min
Milling spindle (standard)24,000 rpm, 67 Nm (S1), HSK A63, max. tool diameter 35 mm (others on request)
Tool changer24 (rotary – can be loaded during machining),
optional 40, 75 or more places (chain changer – can be loaded during machining), integrated measuring laser
Chip disposalwith 2 screws into chip box behind the machine or with additional chip conveyor
Machine weight~19.5 t
Required spaceW 3500 mm x L 4814 mm with HC (depending on configuration) x H 3300 mm
